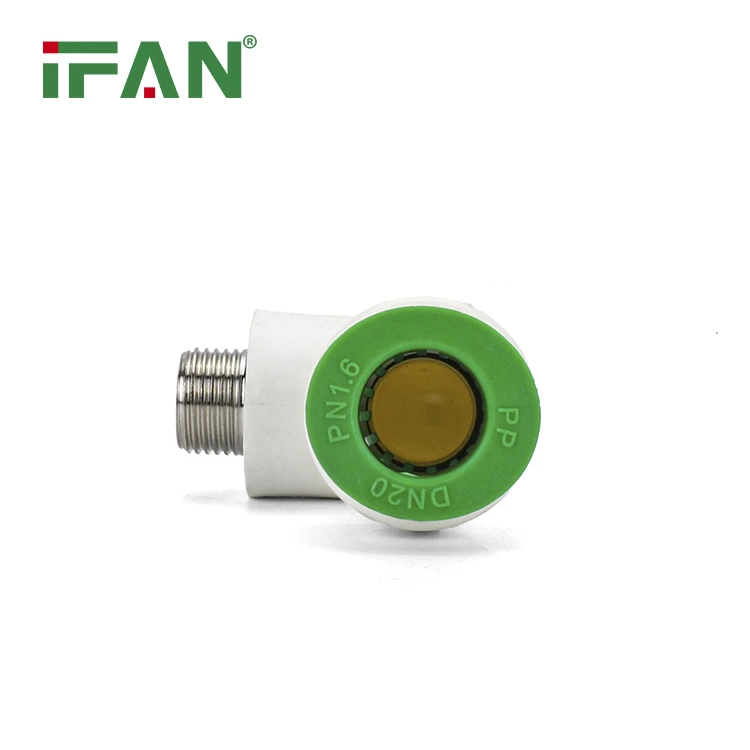

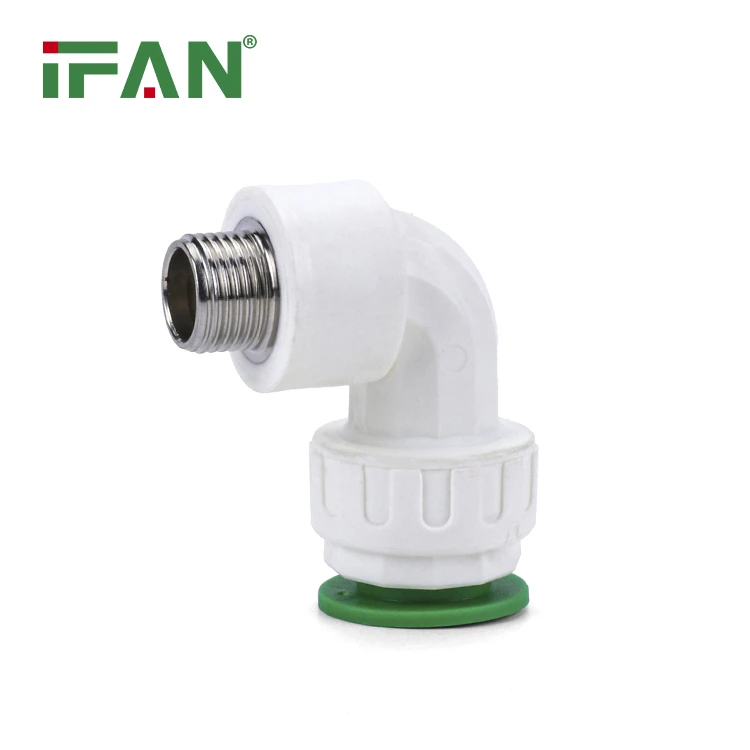

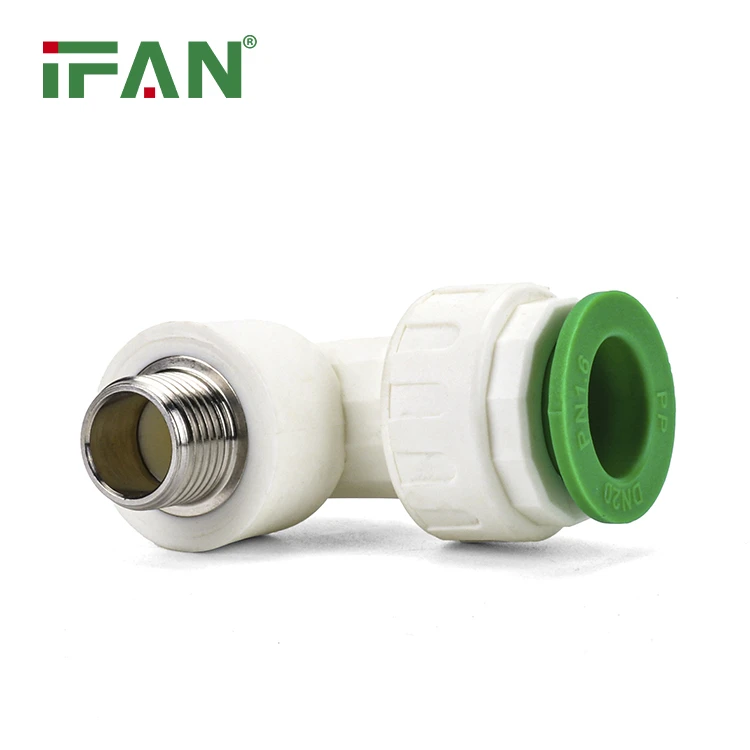

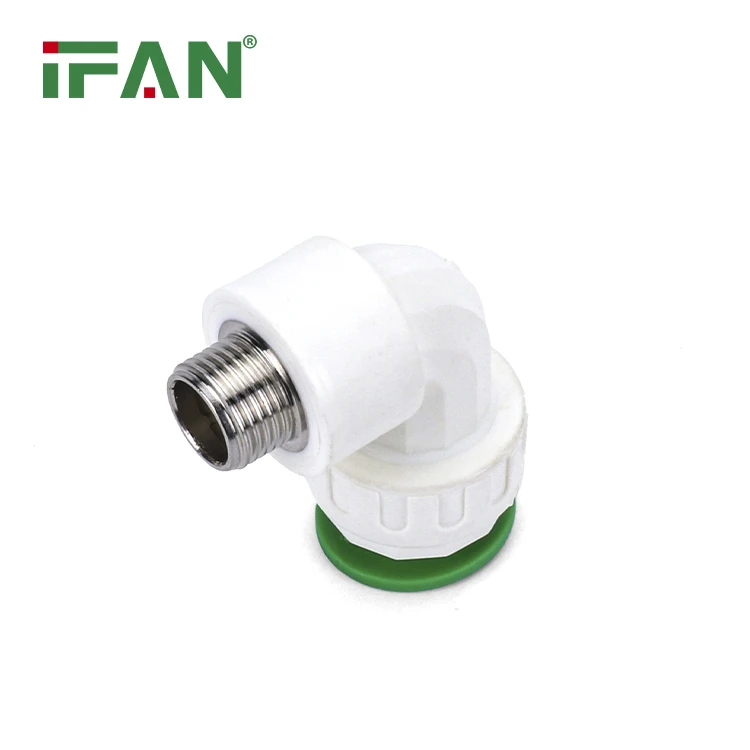

IFAN EN 15874 Push to Connect Brass Male Elbow

Push to Connect Brass Male Elbow: Functions, Advantages, and Applications

Push to connect brass male elbows play an important role in modern fluid and air systems by allowing quick, secure, and leak-free connections between pipes or tubes at a 90-degree angle. They are designed for convenience, efficiency, and durability, making them a preferred choice in plumbing, pneumatic, and various industrial applications. The brass construction offers strength and corrosion resistance, while the push to connect mechanism eliminates the need for tools, sealants, or threading during installation. Whether used for water supply lines, compressed air systems, or industrial machinery, these fittings provide a practical way to connect pipes in tight spaces while ensuring long-term performance.

FAQ

1. What is the primary function of a push to connect brass male elbow?
   Its main function is to connect a pipe or tube to a female-threaded port at a 90-degree angle, enabling directional changes in a system without complicated assembly or soldering.
2. Can push to connect brass male elbows be reused?
   Yes, many can be reused as long as the fitting, O-ring, and collet remain in good condition. Proper inspection before reuse is recommended to ensure a secure seal.
3. Are they suitable for both water and air systems?
   Yes, these fittings are commonly used in both water supply and pneumatic systems due to their versatility and reliable sealing capabilities.
4. Do they work with different pipe materials?
   Yes, push to connect brass male elbows are typically compatible with copper, PEX, CPVC, and some types of polyethylene or nylon tubing, making them adaptable for various projects.
5. Can they handle high temperatures and pressures?
   Brass construction allows these fittings to withstand high temperatures and moderate to high pressures, but the exact limits depend on the manufacturer’s specifications and the application environment.

Basic Definition and Features

A push to connect brass male elbow is a type of quick-connect fitting that combines a push-fit connection on one end with a male-threaded connection on the other. The push-fit side securely holds and seals a pipe or tube through a combination of a gripping collet and an elastomer O-ring. The male-threaded side connects to a female-threaded port, allowing integration into a wide range of systems.

Key features include:

• Quick installation without tools
• Reusable design in many cases
• Compatibility with various pipe materials
• Brass construction for durability and corrosion resistance
• 90-degree angle for space-saving installations
• Reliable sealing for leak prevention
• Available in different sizes to fit system requirements

One of the main advantages of brass is its strength and ability to withstand mechanical stress. It resists corrosion in both water and air systems, making it suitable for indoor and outdoor use. The push to connect mechanism makes it easy to work in confined spaces, as there is no need for wrenches or soldering equipment.

Common Uses and Industry Applications

Their compatibility with multiple pipe materials allows for simple transitions between copper, PEX, and CPVC systems without adapters or special tools.

The 90-degree design helps optimize hose routing and prevent kinking, which improves efficiency and reduces wear.

In HVAC applications, they help connect water or refrigerant lines in heating, cooling, and refrigeration systems. Their sealing performance ensures efficiency and prevents costly leaks.

The ability to quickly disconnect and reconnect parts reduces downtime during maintenance or reconfiguration.

Agriculture and irrigation systems also benefit from these fittings. Farmers use them to create compact, durable connections in watering systems, often in challenging environments where corrosion resistance is essential.

Marine and RV applications take advantage of their compact design, strength, and resistance to moisture, making them a good choice for tight engine compartments, portable water systems, and onboard air tools.

Conclusion

Push to connect brass male elbows combine the reliability of brass construction with the convenience of a quick-connect mechanism, making them an indispensable part of many plumbing, pneumatic, and industrial systems. Their ability to save space, connect different pipe materials, and provide a secure seal without tools allows for faster installations and more efficient maintenance. Across industries, from residential plumbing to manufacturing and agriculture, these fittings help systems operate smoothly while reducing installation time and labor costs. Their role in providing both functional and long-lasting connections ensures they remain a top choice for professionals and DIY users alike.
